Single Pair Ethernet 10BASE-T1L board for RaspberryPi
SPE HAT / SPE HAT mini (Coming soon)

CERASITE C-02

SPE HAT / SPE HAT mini is an expansion board that can turn RaspberryPi into a single pair Ethernet 10BASE-T1L terminal. The SPE HAT is a standard size RaspberryPi HAT and the SPE HAT mini is a RaspberryPi zero HAT.

10BASE-T1L (IEEE 802.3cg-2019) and Ethernet-APL are new standards to replace conventional field networks such as RS485, enabling all industrial networks to be Ethernetized. The standard transmission distance is 1000m, and it supports a transmission speed of 10Mbps and power supply up to 52W by PoDL/SPoE. It also supports intrinsically safe and is expected to be introduced in plants in the future.

More details ...

J-7 SYSTEM WORKS Products

J-7SYSTEM WORKS

We sell various products as an authorized distributor of J-7 SYSTEM WORKS Co.,Ltd in Japan.

CERASITE C-02

CERASITE C-02

CERASITE C-02 is an extremely small FPGA board that achieves a DIP scale size of 300 mil width. The Intel Max10 FPGA, power supply circuit, and oscillator are mounted onboard, making it ideal for prototyping as an FPGA board that does not require external components.

Specifications:

  • FPGA: Intel 10M02DCV36C8G
  • Onborad OSC: 50MHz
  • User LED: 1
  • User I/O: Up to 17
  • Power Supply: 3.3V single power supply
  • Size: 300mil DIP-20pin shape (25.7 mm x 7.6 mm)

The product is also available in trays of 35 pieces.

PERIDOT Piccolo

PERIDOT_Piccolo

PERIDOT Piccolo is a programming board for rapid prototyping developed with the concept of simple and compact.

You can use various hardware I/Os from script languages (mruby, JavaScript) simply by downloading the firmware containing the script execution engine and hardware configuration information from the Web and writing it from the development environment. Of course, it can also be used as a normal FPGA board.

Specifications:

  • FPGA: Intel 10M08SAE114C8G
  • Onboard memory: SDRAM 8M bytes, SPI-Flash 4M bytes
  • Onborad OSC: 50MHz
  • User LED: 1
  • User I/O : Up to 30 (include 6 analog inputs)
  • Power Supply: 3.3V single power supply
  • Size: 1100mil DIP-40pin shape (53.4 mm × 30.5 mm)

PERIDOT

PERIDOT

PERIDOT Piccolo is an FPGA board for rapid prototyping developed with the concept of simple and compact.

You can use various hardware I/Os from script languages (mruby, JavaScript) simply by downloading the firmware containing the script execution engine and hardware configuration information from the Web and writing it from the development environment.

In addition, the inside of the FPGA can be accessed from the host PC, and it can also be used from native applications on various OSs by the published protocol.

Specifications:

  • FPGA: ALTERA CycloneIV E (EP4CE6E144C8N)
  • Onboard memory: SDRAM 64M bits, ConfigurationROM 4M bits
  • User I/O: Up to 28
  • Power supply: Supplied from USB
  • Size: Equivalent to Arduino Uno

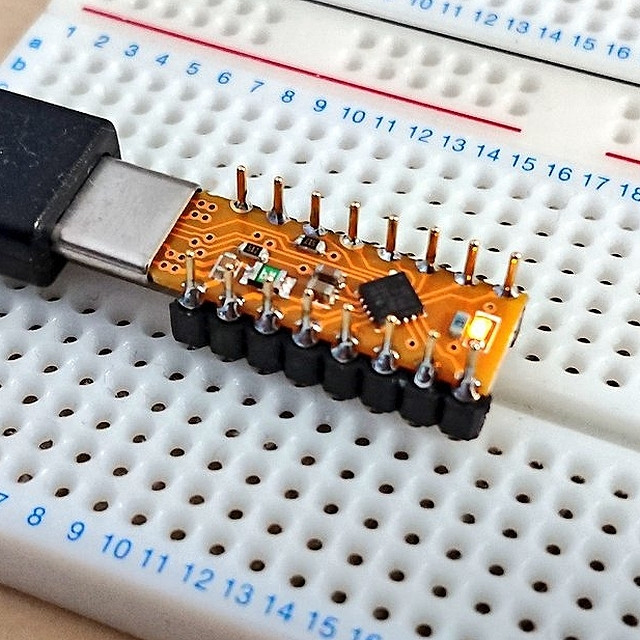

EFM8UB1 Breakout

EFM8UB1 Breakout

It is a DIP type breakout board equipped with Silicon Lab's EFM8UB1 (Universal Bee series). You can write programs and perform other communications by connecting directly to a USB Type-C cable.

Specifications:

  • MCU : Silicon Lab EFM8UB10F16G-C
  • User LED: 1
  • Power supply: Supplied from USB
  • USB Type-C connector formed on the board
  • Size: 300mil DIP-16pin shape (27.0 mm x 7.6 mm)
